Continuous Delivery with Docker on Mesos in less than a minute - Part 2

March 9, 2015 by Pini Reznik

In the Part 1 I showed how to dockerize a node.js application on the development machine and later deploy Jenkins and Docker registry using Docker Compose and use them for continuous integration of the node.js app.
In Part 2 I continue the setup for Mesos and Marathon and complete the Continuous Delivery cycle.

Cloud

Continuous Delivery with Docker on Mesos Part 2

If you have never heard about Mesos or Marathon, at this point it will be useful to read a bit about them: here, here or here.

Now, when we have functional development and continuous integration environments, we can start building the Mesos cluster.
Here is the full docker-compose.yml file that includes all parts of the system. In addition to previously configured Jenkins and Docker registry we have Mesos master, single Mesos slave, Mesosphere Marathon and Zookeeper for internal Mesos communication.


# Zookeeper: -p 2181:2181 -p 2888:2888 -p 3888:3888
zookeeper:
  image: jplock/zookeeper:3.4.5
  ports:
    - "2181"
master:
  image: mesoscloud/mesos-master
  hostname: master
  links:
    - zookeeper:zookeeper
  environment:
    - MESOS_ZK=zk://zookeeper:2181/mesos
    - MESOS_QUORUM=1
    - MESOS_WORK_DIR=/var/lib/mesos
    - MESOS_LOG_DIR=/var/log
  ports:
    - "5050:5050"
marathon:
  #image: garland/mesosphere-docker-marathon
  image: mesosphere/marathon
  links:
    - zookeeper:zookeeper
  ports:
    - "8080:8080"
  # this image does not respect MARATHON_ env variables, so adding the params via command
  command: --master zk://zookeeper:2181/mesos --zk zk://zookeeper:2181/marathon
slave:
  image: mesoscloud/mesos-slave
  links:
    - zookeeper:zookeeper
    - master:master
  environment:
    - MESOS_MASTER=zk://zookeeper:2181/mesos
    - MESOS_EXECUTOR_REGISTRATION_TIMEOUT=5mins
    - MESOS_CONTAINERIZERS=docker,mesos
    - MESOS_ISOLATOR=cgroups/cpu,cgroups/mem
    - MESOS_LOG_DIR=/var/log
  volumes:
    - /var/run/docker.sock:/run/docker.sock
    - /usr/bin/docker:/usr/bin/docker
    - /sys:/sys:ro
    - mesosslace-stuff:/var/log
  expose:
    - "5051"
jenkins:
  image: containersol/jenkins_with_docker
  links:
    - marathon:marathon
  volumes:
    - jenkins-stuff:/var/jenkins_home
    - .:/var/jenkins_data
    - /var/run/docker.sock:/var/run/docker.sock
    - /usr/bin/docker:/usr/bin/docker
  ports:
    - "8081:8080"
registry:
  image: registry
  environment:
    - STORAGE_PATH=/registry
  volumes:
    - registry-stuff:/registry
  ports:
    - "5000:5000"



There is not much to explain in the docker-compose.yml. All of the environment parameters are taken from the usage instructions for the images on the Docker Hub.
The Mesos slave container also using the trick with the mounted socket, but nothing needs to be fixed here since slave is running the root user that has permissions to access the socket.
It is important to note that the Jenkins container now includes a link to Marathon. This is required to be able to post the requests from the Jenkins container to the Marathon container. We will see it in the next part about deployment.

Now we can restart the system and see it all up and running:


docker-compose up
(out) Creating cddemo_registry_1...
(out) Recreating cddemo_zookeeper_1...
(out) Creating cddemo_master_1...
(out) Creating cddemo_slave_1...
(out) Recreating cddemo_marathon_1...
(out) Creating cddemo_jenkins_1...

The containers will start very quickly (as they always do), but it will take about 30 seconds until all the services are online (on an Ubuntu VM running on MacBook Air).

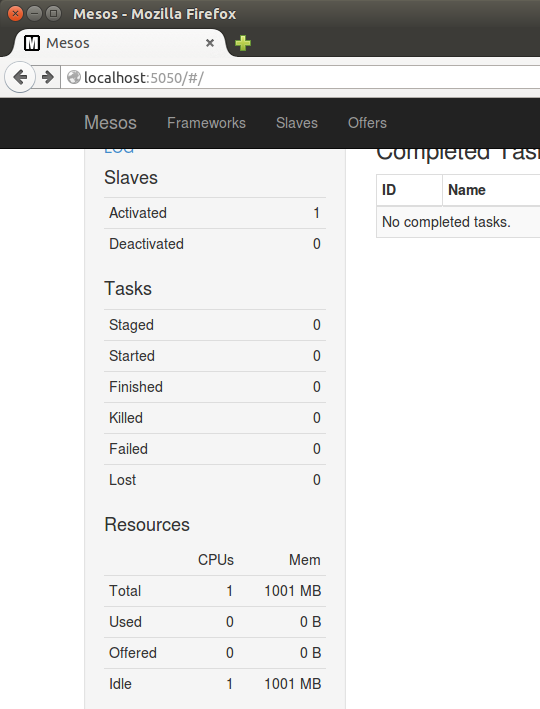

Mesos will start on http://localhost:5050. You can also see one active slave in the following screenshot. The slave has no publicly exposed port in this setup.

Continuous Delivery with Docker on Mesos Part 2

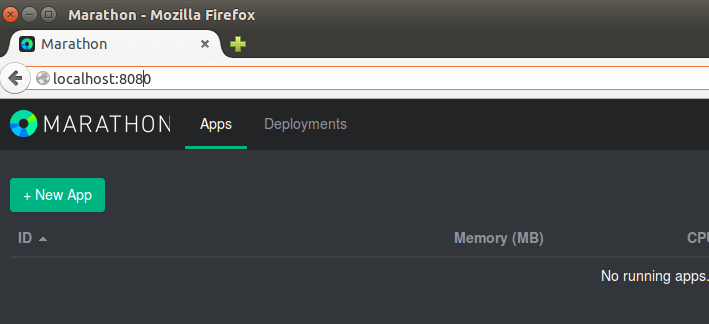

Marathon will be accessible at http://localhost:8080

Continuous Delivery with Docker on Mesos Part 2

Deployment

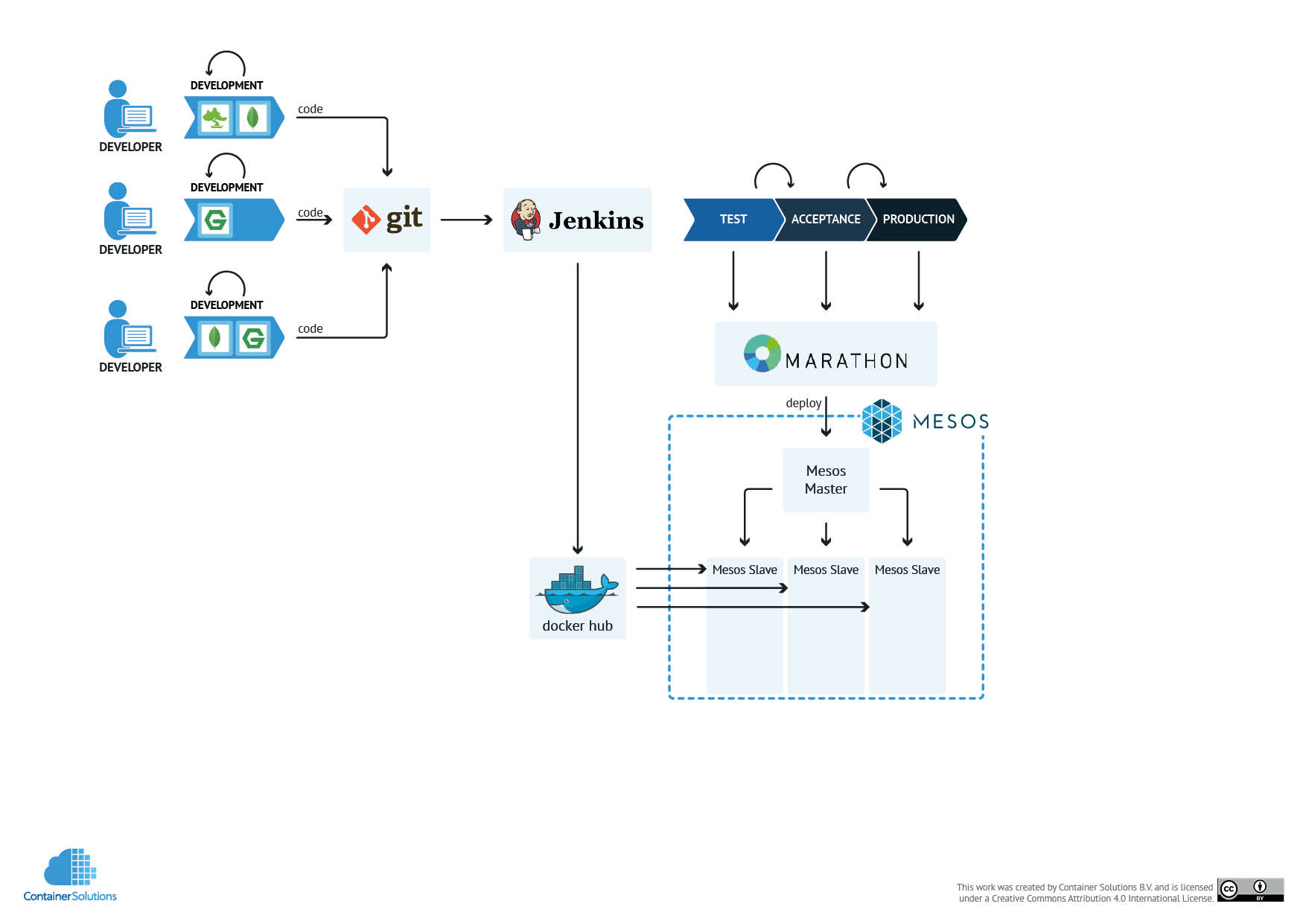

The last part of the journey is to deploy our freshly built docker image on Mesos using Marathon.

Continuous Delivery with Docker on Mesos Part 2

First we need to create the configuration file for scheduling an application on Marathon, let's call it app_marathon.json:


{
    "id": "app",
    "container": {
      "docker": {
        "image": "localhost:5000/containersol/nodejs_app:latest",
        "network": "BRIDGE",
        "portMappings": [
          {"containerPort": 8000, "servicePort": 8000}
        ]
      }
    },
    "cpus": 0.2,
    "mem": 512.0,
    "instances": 1
}



Here again there are some shortcuts. For example, an important missing piece is a health-check that should tell Marathon when the application is running and when it isn't.

Once we have the json file to publish we can add the last script deploy.sh that will remove the currently running application and redeploy it using the new image. There are better upgrade strategies but, again, I won't discuss them here.


#!/bin/bash

if [ -z "${1}" ]; then
   version="latest"
   marathon="localhost"
else
   version="${1}"
   marathon=${MARATHON_PORT_8080_TCP_ADDR}
fi

# destroy old application
curl -X DELETE -H "Content-Type: application/json" http://${marathon}:8080/v2/apps/app

# I know this one is ugly. But it works for now.
sleep 1

# these lines will create a copy of app_marathon.json and update the image version
cp -f app_marathon.json app_marathon.json.tmp
sed -i "s/latest/${version}/g" app_marathon.json.tmp

# post the application to Marathon
curl -X POST -H "Content-Type: application/json" http://${marathon}:8080/v2/apps -d@app_marathon.json.tmp

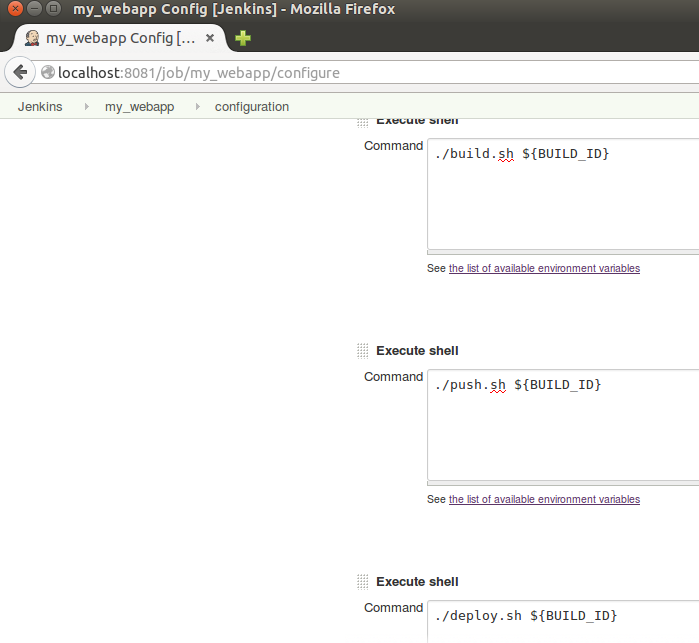

The last step would be to add deploy.sh to Jenkins configuration and run the build.

Continuous Delivery with Docker on Mesos Part 2

And after the build has successfully finished we can see the application running on Marathon:

Marathon Screenshot - Continuous Delivery with Docker on Mesos Part 2

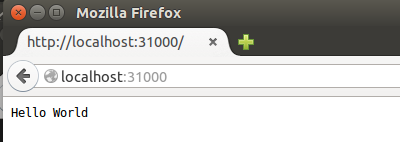

And we can see our app on http://localhost:31000/:

'Hello World' screenshot - Continuous Delivery with Docker on Mesos Part 2

Now you can try changing your application and triggering the build in Jenkins. In just few seconds it will find it's way through Jenkins, the Docker Hub and Marathon to Mesos!

Here is a short video showing the complete setup in action:

http://youtu.be/OkozZLRDuoI

Future Improvements

There are two main direction to improve this system - adding more functionality and deepening the quality of the setup.

The list of possible extensions is very long. Here are some examples:

  • Extending HelloWorld example to be a proper web application
  • Adding multiple languages
  • Using a multi-container setup deployed on Mesos
  • Adding automated tests on multiple levels (unit tests, systems tests, performance tests, etc.
  • Triggering Jenkins builds automatically from a Git hook
  • Deploying to public clouds such as GCE, AWS etc
  • Running on multiple hosts.
  • HAProxy setup
  • Auto-scaling with simulation of load using jmeter
  • Deploying a microservices based system
  • Using Flocker for persistent storage
  • Using Weave for networking containers
  • Using Consul for automatic service discovery
  • Adding system monitoring
  • Adding centralised logging

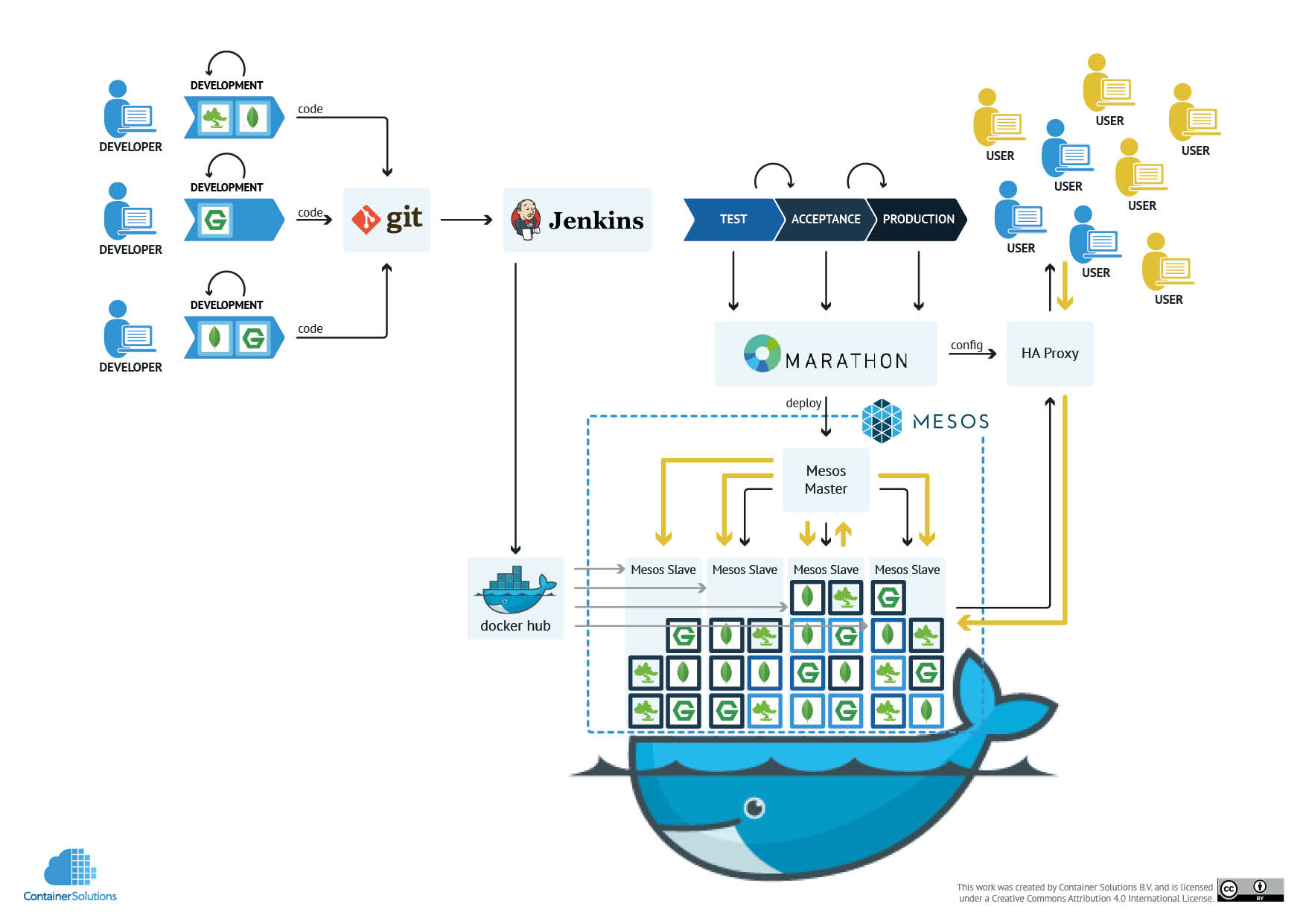

My preferred next step would be to focus of the part of the system facing external users and add HAProxy and auto-scaling capabilities as demonstrated in the next diagram:
Continuous Delivery with Docker on Mesos Part 2

Final Words

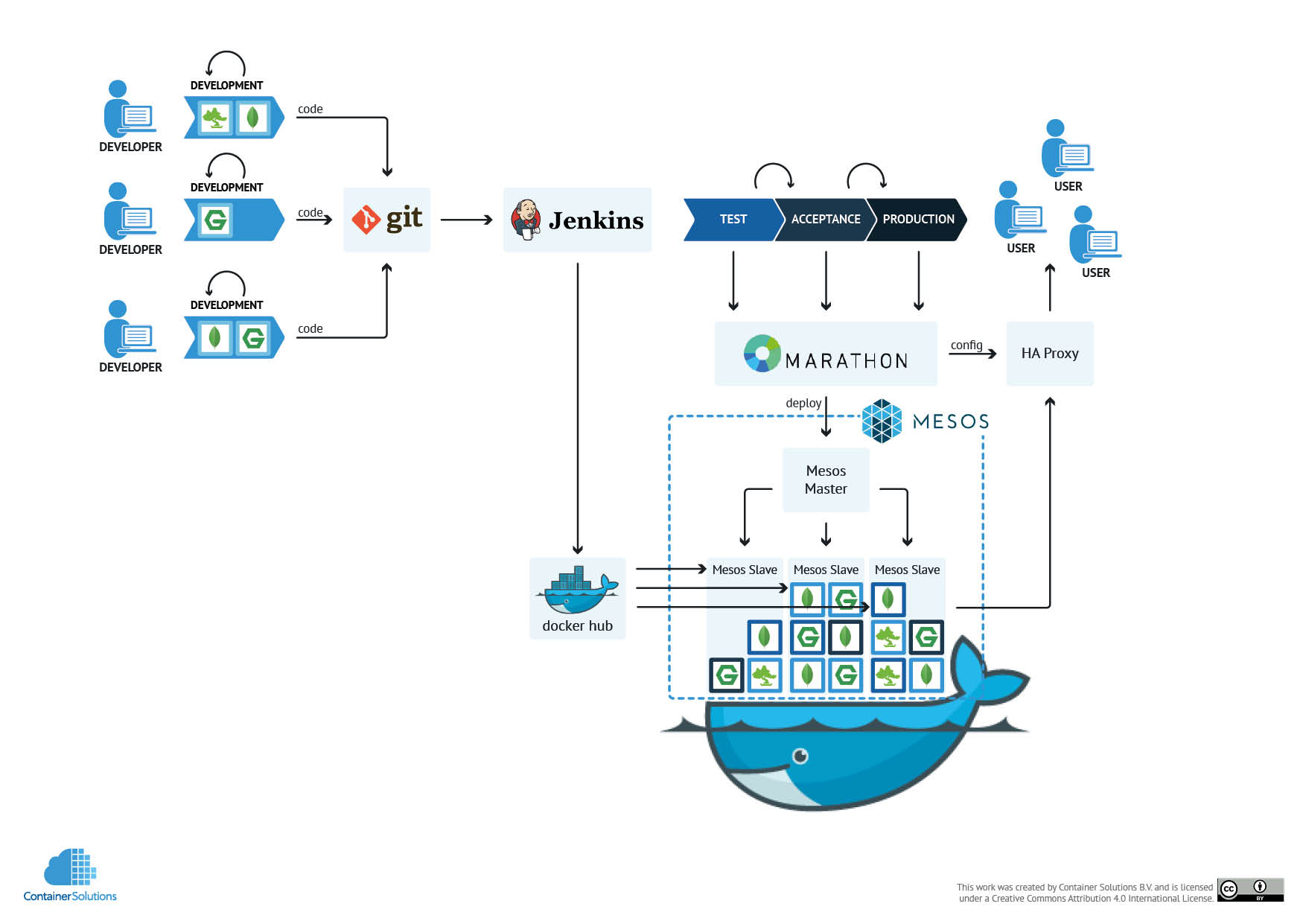

I started working on this set-up mainly to help developers and administrators to learn how to use Docker and Mesos in context of continuous delivery. Over the course of the last few months I saw that the full system is very complex and hard to explain and even harder to set-up and start playing with it.

For the same reason we asked our friend Marta Marszal who created excellent visuals to make the story much more clear.

Please feel free to suggest improvement and grow this example system to help other people to learn and experiment.

You are also free to download the diagrams as separate images, or as a PDF with a full story and re-use them any way you like (please don't forget to mention us).
CD_with_Mesos_Docker

Also all the sources can be found in GitHub: https://github.com/ContainerSolutions/cd_demo
